Nichicon Audio Capacitors

Nichicon Audio Capacitors

Nichicon offers several series of electrolytic Audio Capacitors specially designed for use in audio applications. The Audio Capacitors series from Nichicon are available in leaded and snap-in terminations.

KZ Series
KZ Series Audio Capacitors

Buy Now

View Product List


Nichicon KZ Series is part of the
premium-grade Nichicon MUSE acoustic series. The KZ Series Electrolytic
Capacitors from Nichicon are ideally suited for first-class audio
equipment.



Features

  • Premium grade “Nichicon MUSE” acoustic series
  • Capacitance 10 to 1000µF
  • Voltage range 25V to 100V
  • Compliant to RoHS directive 2002/95/EC

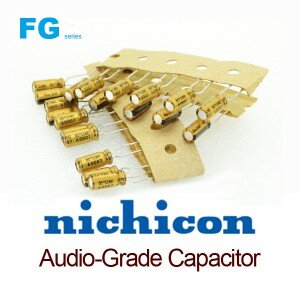

FG Series

Buy Now

View Product List



Nichicon FG Series, part of the “Fine Gold” MUSE acoustic series, is suitable for high- grade audio equipment. These audio capacitors use state-of-the-art etching techniques and offer a rich sound in the bass register.

Features

  • Suitable for high-grade audio equipment
  • Capacitance 0.1 to 10,000µF
  • Voltage range 6.3 to 100V
  • Temperature range -40ºC to +85ºC
  • Compliant to RoHS directive 2002/95/EC
KW Series
Nichicon KW Series Audio Capacitors

Buy Now

View Product List

Nichicon KW Series standard audio capacitors offer a harmonious balance of sound quality.  These capacitors are most suitable for AV equipment such as DVDs.

Features

  • Standard type audio capacitors
  • Capacitance 0.1 to 33,000µF
  • Voltage range 6.3 to 100V
  • Temperature range -40ºC to +85ºC
  • Compliant to RoHS directive 2002/95/EC
FW Series
FW Series Audio Capacitors

Buy Now

View Product List

Nichicon FW Series is a standard audio capacitor series for audio equipment. This series is RoHS compliant.

Features

  • Standard type audio capacitors
  • Capacitance 0.1 to 33,000µF
  • Voltage range 6.3 to 100V
  • Temperature range -40ºC to +85ºC
ES Series
Nichicon ES Series Audio Capacitors

Buy Now

View Product List

Nichicon ES Series is part of the bi-polarized “MUSE” series.  This series is suitable for audio signal circuits.

Features

  • Capacitance range 0.47 to 1000µF
  • Voltage range 6.3V to 50V
  • Operating temperature range -40ºC to +85ºC
  • Compliant to RoHS directive 2002/95/EC
KA Series

Nichicon KA Series Aluminum Electrolytic Capacitors

Buy Now

View Product List

Nichicon’s KA Series Audio Capacitor was designed as a higher-grade 105ºC capacitor capable
of achieving higher sound quality in audio devices than Nichicon’s
standard 105ºC-resistant KT Series. KA Series capacitors from Nichicon
are constructed with select materials to create superior acoustic sound
and are compliant to the RoHS directive (2002/95/EC).

Features

  • Capacitance range: 22 to 22000µF
  • Rated voltage range: 6.3 to 50V
  • Category temperature range: -55°C to +105°C

Snap-in terminations

KG Series
Nichicon KG Series Audio Capacitors

Buw Now

View Product List

Nichicon KG Series, designed for high-grade audio equipment,
offers three sound quality variations.

Features

  • Capacitance range 680 to 33,000µF
  • Voltage range 16V to 100V (Type I, Type II, and Type III)
  • Temperature range -40ºC to +85ºC

KX Series
Nichicon KX Series Audio Capacitors

Buy Now

View Product List

Nichicon KX Series audio capacitors deliver high quality sound from a wide temperature range up to 105ºC. These capacitors are constructed from select materials to achieve superior acoustic sound.

Features

  • Capacitance range 56 to 2200µF
  • Voltage range 200V to 450V
  • Compliant to RoHS directive (2002/95/EC)
